Mitsubishi Lancer Evolution


CD9A Mitsubishi Lancer Evolution
1992.10 : Mitsubishi launched the Lancer Evolution GSR sports AWD sedan series with the purpose of participating in the World Rally Championship (WRC). The Lancer Evolution is powered by a 4G63 DOHC turbocharged engine with high capacity intercooler that makes 250 horsepower.
The suspension adopts McPherson strut type front suspension and newly developed multi-link rear suspension. And brakes adopt 15 inches 2 pods front discs and 14 inches rear disc. The Lancer Evolution is equipped with a air-to-air oil cooler, an aluminum engine hood with large-sized air outlets, a large rear spoiler, a MOMO steering wheel (GSR), and RECARO seats (GSR)



CE9A Mitsubishi Lancer Evolution II / III
1994.01 : The Lancer Evolution II was launched. Engine power has been improved to 260 horsepower by updating the boost pressure and by improving the exhaust. The handling of the first Evolution was called a weak point by most and so Mitsubishi improved and sharpened the handling.
And body stiffness has been increased. Wider 205/60R15 tires are fitted ; up by 10mm in tread width.
1995.2 : The body strength of the Lancer Evolution III is improved by 20%, allowing more body twist than the previous model. A revised large rear spoiler is equipped.



CN9A Mitsubishi Lancer Evolution IV
1996.10 : The new platform for the Evolution IV was introduced. The 4G63 engine has been improved, and adopts a metal head gasket, TD05HR-16G6-9T turbine, a large size intercooler with twin water spray, and a chrome-molybdenum steel flywheel. And the conventional LSD has been changed to an Active Yaw Control (AYC) system that can change left and right rear torque distribution. This is achieved by utilizing a torque transfer differential that controlled by various sensors and an electronic control unit (ECU) to enable a difference in torque to go to each of the rear wheels. This results in optimal power distribution between the left and right rear wheels to maintain maximum traction when cornering, correction under steer and over steer. The double wishbone rear suspension is also adopted.



CP9A Mitsubishi Lancer Evolution V
1998.01 : The Lancer Evolution V has been developed as the base model for Group-A rally car. The Lancer Evolution 5 continues the evolution process, with a further increase in engine torque and substantially improved handling thanks to a wider treads and upgraded BREMBO braking.
Tire size is increased up to 225/45ZR17. The Evolution 5 is also equipped with a delta-shaped wicker and adjustable rear spoiler that can provide four different angle-of-attack settings for the wing to vary rear aerodynamic down-force to suit a wider range of driving conditions.

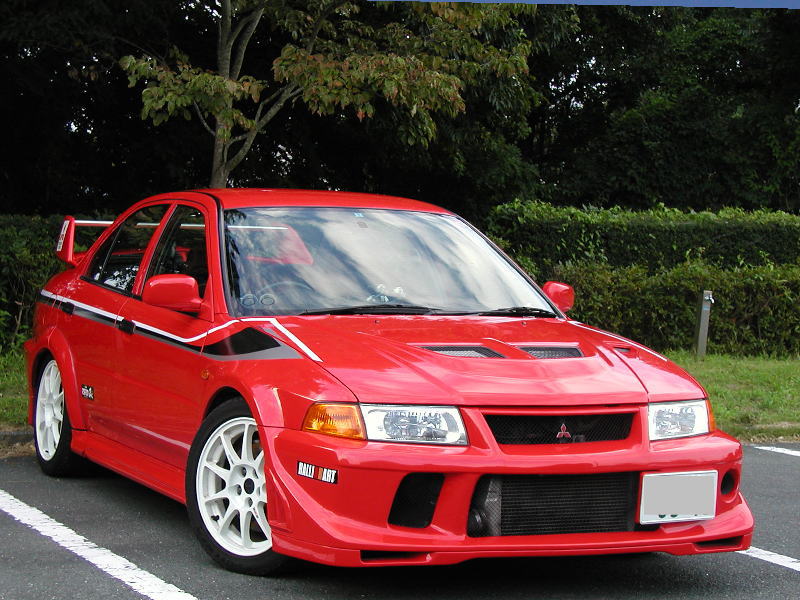

CP9A Mitsubishi Lancer Evolution VI
1999.02 : The Lancer Evolution VI conforms to the WRC regulation for 1999. Improvements in safety and cooling are achieved in the latest Evolution incarnation.
The Evolution 6 features a number of new aero parts in its revamped exterior and interior design, as well as further improvements in handling, stability and cooling performance resulting in greater performance. The 4G63 engine has been improved by changing the water temperature regulation, adding cooling channels to the pistons and by using a high-volume oil cooler. A larger diameter air intake hose and turbocharger air intake port is used to achieve improved high-end power output and response. The interior boasts black/blue RECARO seats, a leather wrapped steering wheel, a blue-stitch shift lever boot and a blue dial face instrument cluster. Also available by order is the RS Evolution 6 competition model designed for entry in motor sports events.
1999.10 : Mitsubishi introduced the Lancer Evolution VI TOMMI MAKINEN Edition. The TOMMI-MAKINEN edition features a tarmac tuned suspension that gives improved initial response on tarmac surfaces. A high-response titanium turbocharger gives better low-end and mid-range torque, using a smaller size compressor wheel. A new exhaust silencer is employed with a single large bore circular tailpipe for improved performance. 17-inch alloy wheels share the same design as on Mitsubishi's WRC Group-A works car.
